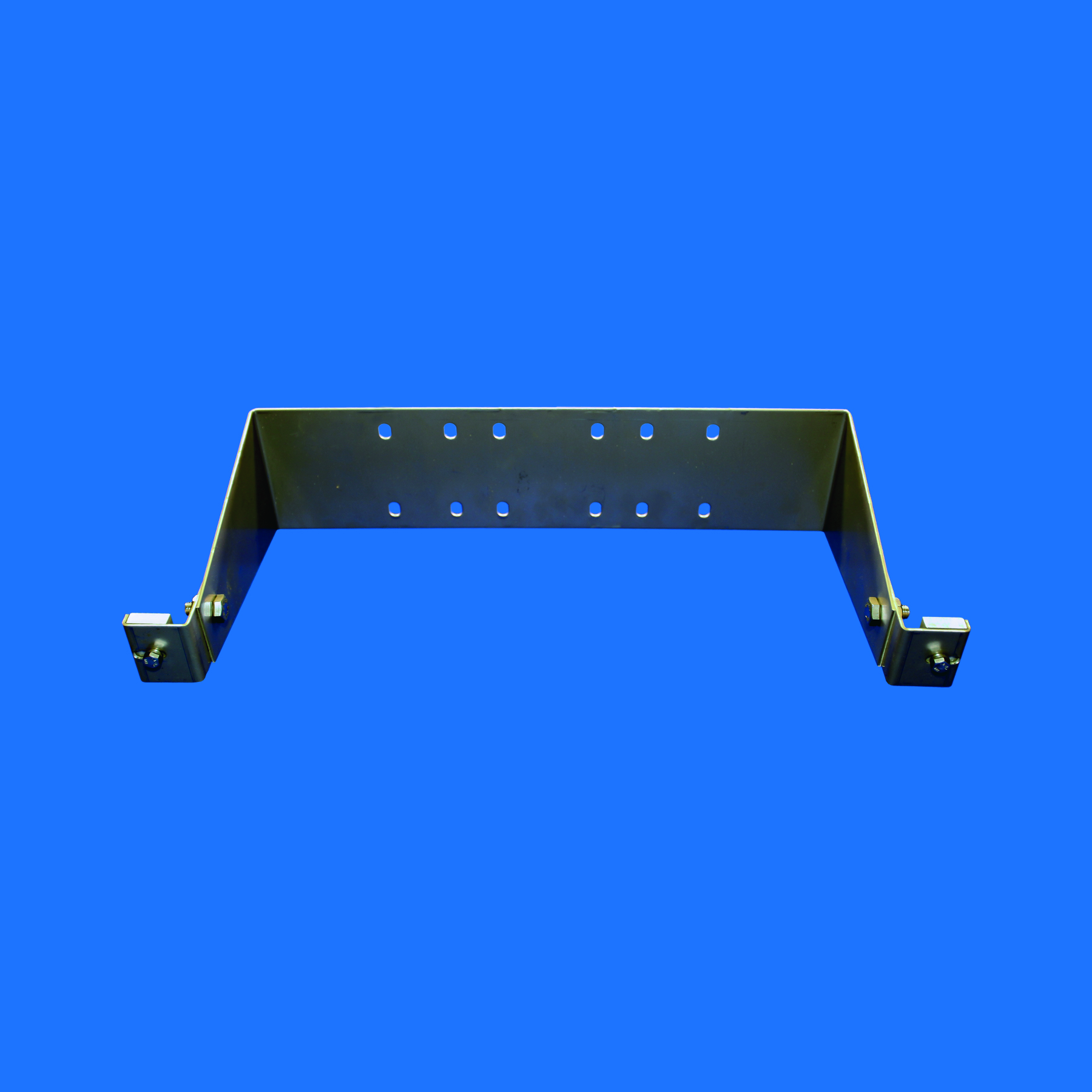

wall bracket 9001 05 / pole bracket 9003 05
Robust bracket for wall or pole mounting, available either in hot-galvanized steel or stainless steel. Fixing screws in stainless steel. Allows stepless vertical orientation.
Suitable for luminaires Led Victor 500M and Victor Emergency.
Pole bracket suitable for poles ∅ 40…60mm.
Product codes
| Product code | Specification | Material | Weight |
| 900 1 05 00 | Wall bracket 9001 05 | Hot galvanized steel | 3 kg |
| 900 1 05 00 RST | Wall bracket 9001 05 RST | Stainless steel | 3 kg |
| 900 3 05 00 | Pole bracket 9003 05 | Hot galvanized steel | 3,5 kg |
| 900 3 05 00 RST | Pole bracket 9003 05 RST | Stainless steel | 3,5 kg |
Downloads:
900105_wall bracket_032022 (datasheet, pdf)

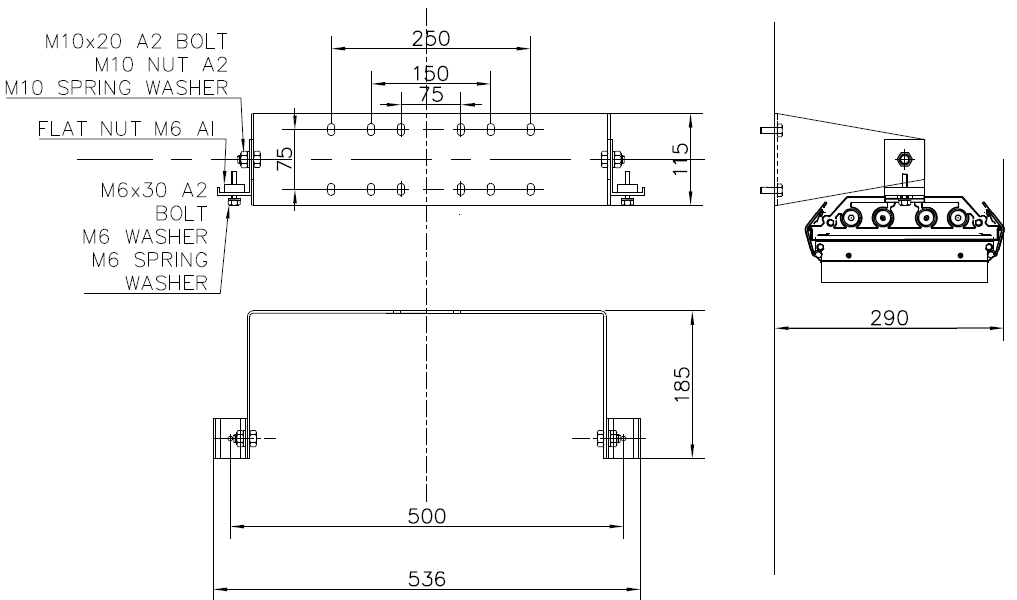

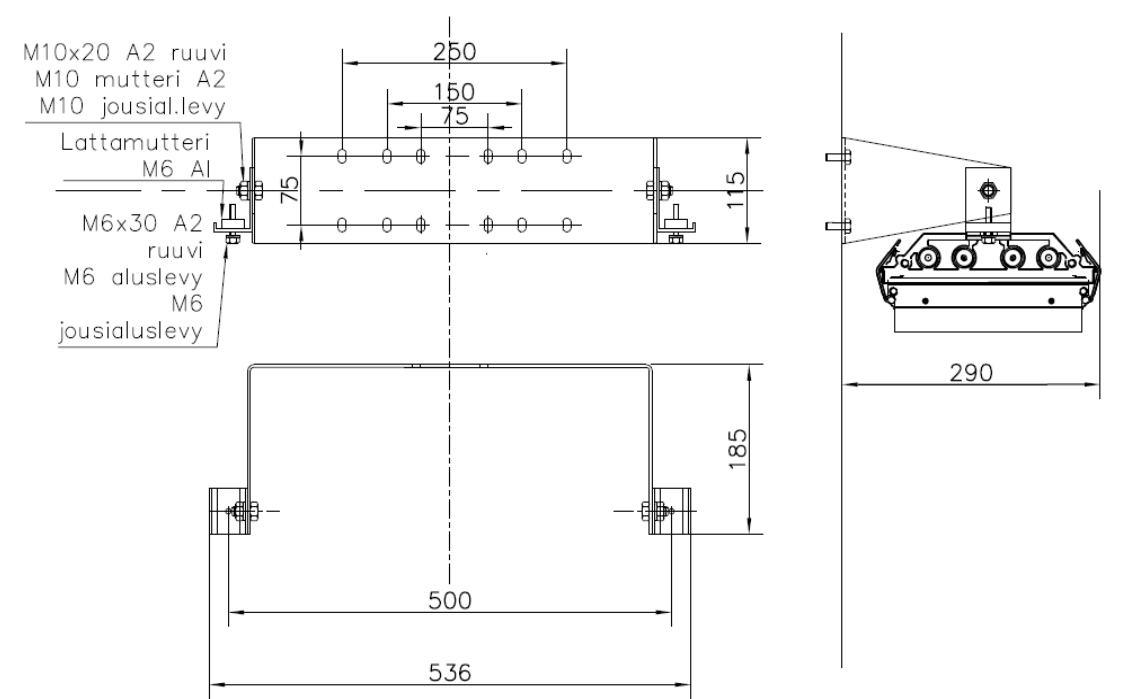

900 1 0500 mounting instruction (dimensions and installation, pdf)
900 3 0500 pole bracket (dimensions and installation, pdf)
