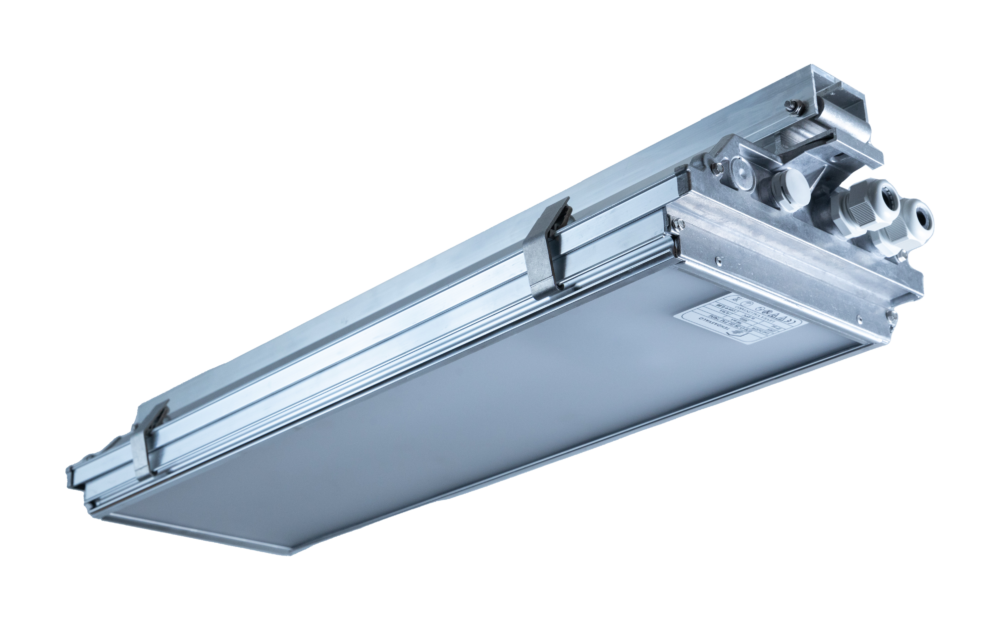

LED VICTOR 750M

LED 70W/96W | 8600-13500Lm

Ta: -40…+ 45ºC

Description

LED VICTOR luminaires are safe and reliable choice for industrial applications. Strong and robust mechanical sturcture has been used in conventional Victor luminaires for 30 years, proving it's resistance in demanding industrial conditions.

Led Victor 750M is an outstanding option for general lighting in industrial low bay areas, mounting heights of 3-8m. It is well suitable to replace conventional luminaires with discharge lamps 100W-150W.

Common applications include:

  • industrial production areas
  • low bay areas in pulp and paper mills
  • chemical industry
  • boiler room platforms
  • outdoor areas; stairways and maintenance bridges (mounted on a telescopic pole)
  • mining industry; process areas, underground tunnels, pumping stations
  • sawmills

Closed structure and smooth aluminium housing in extruded aluminium is well suitable for dirty and dusty areas. Ventilation through an integrated particle filter, that keeps the luminaire clean inside, even in most demanding conditions.

Standard diffusor with 4mm tempered safety glass, but also available in satin PMMA (HACCP-approved) or PC. PMMA-cover passes the light just as efficiently as the glass cover. PC-cover lowers the efficiency, but it's mechanical strength is better than in PMMA.

Real energy-savings can be reached with efficient light control. Led Victor 750M is available with several light control options, which can be modified upon customer request.

Led Victor is supplied with instant mounting rail which makes it easy to install. Several different mounting options available, see suitable brackets in table below.

Led Victor luminaires are manufactured in Imatra, Finland and they have a 5-year warranty. Each luminaire goes through a 100% test on safety and function before delivery.

Technical data

Led modules:

2x 32W 5390lm 168lm/W @700mA /

4x 22,5W 3990lm 179lm/W @500mA

Total power:

70W / 96W

Luminaire flux:

8600—13500 Lm (123-141lm/W)

Color temperature:

4000K (other available upon request)

CRI:

≥70 (other available upon request)

MacAdam:

4 SDCM

Operating temperature:

-40°C … +45°C (varies between types)

Electrical class:

I

Connection:

-0- 5x2,5mm² (with light control -0- 7x2,5mm²) / plug + 1,5m connection cable / CEE17-plug + 1,5m connection cable

Voltage:

230V AC 50Hz

Estimated lifespan:

L90B10 >100.000h

Control options:

Dali / StepDIM / AstroDIM / MainsDIM

Housing:

Body extruded AL, end caps die cast AL, silicone gaskets, integrated dust filter

Cover:

Tempered safety glass / PC / PMMA, frame in AL, cover hinged, hinges in AL

Weight:

7,3 / 7,5 kg

Mounting:

Mounting height 3-8m. Instant mounting rail included -> easy to mount. Straight to ceiling, lighting suspension rail or cable ladder. See suitable brackets on p. 5.

Warranty:

5 years

Electrical components replaceable:

Yes

Versions and product codes

LED VICTOR 750M with glass cover

Code

Beam

Power

Net flux

Ta max.

Connection

070 O 28 A1P

AxP (epäs)

70 W

8200 Lm

45°C

-0- 5x2,5mm²

070 O 28 A1S

AxS (epäs)

70 W

8200 Lm

45°C

-0- 5x2,5mm²

070 O 28 AP1

AP (epäs.)

70 W

8200 Lm

45°C

-0- 5x2,5mm²

070 O 28 AS1

AS (epäs.)

70 W

8200 Lm

45°C

-0- 5x2,5mm²

070 O 28 B1

B (49°)

70 W

8000 Lm

45°C

-0- 5x2,5mm²

070 O 28 C1

C (67°)

70 W

8200 Lm

45°C

-0- 5x2,5mm²

070 O 28 D1

D (104°)

70 W

8400 Lm

45°C

-0- 5x2,5mm²

095 O 28 A1P

AxP (epäs.)

96 W

12900 Lm

40°C

-0- 5x2,5mm²

095 O 28 A1S

AxS (epäs.)

96 W

12900 Lm

40°C

-0- 5x2,5mm²

095 O 28 AP1

AP (epäs.)

96 W

12900 Lm

40°C

-0- 5x2,5mm²

095 O 28 AS1

AS (epäs.)

96 W

12900 Lm

40°C

-0- 5x2,5mm²

095 O 28 B1

B (49°)

96 W

12500 Lm

40°C

-0- 5x2,5mm²

095 O 28 C1

C (67°)

96 W

12900 Lm

40°C

-0- 5x2,5mm²

095 O 28 D1

D (104°)

96 W

13100 Lm

40°C

-0- 5x2,5mm²

Options

Led Victor –luminaires can be tailored to customer needs. Here the most common options:

Option

Additional code

Light control

Motion detection (StepDim)

LT

Daylight control

H

Dali-control

DA

Structure

Plug and 1,5m connection cable

2 (replaces the last number)

CEE17-Plug and 1,5m connection cable

17 (replaces the last number)

Polyester powder coating (RAL 7024)

EP

PC-cover

PC

PMMA-cover (HACCP-approved)

PM

Downloadable content (pdf):

LedVictor750M_datasheet_052021 (pdf)

Led Victor 750M LDT-files (.zip)
