LED 105-140W | 11400-16500Lm

Ta: -40ºC … +35ºC

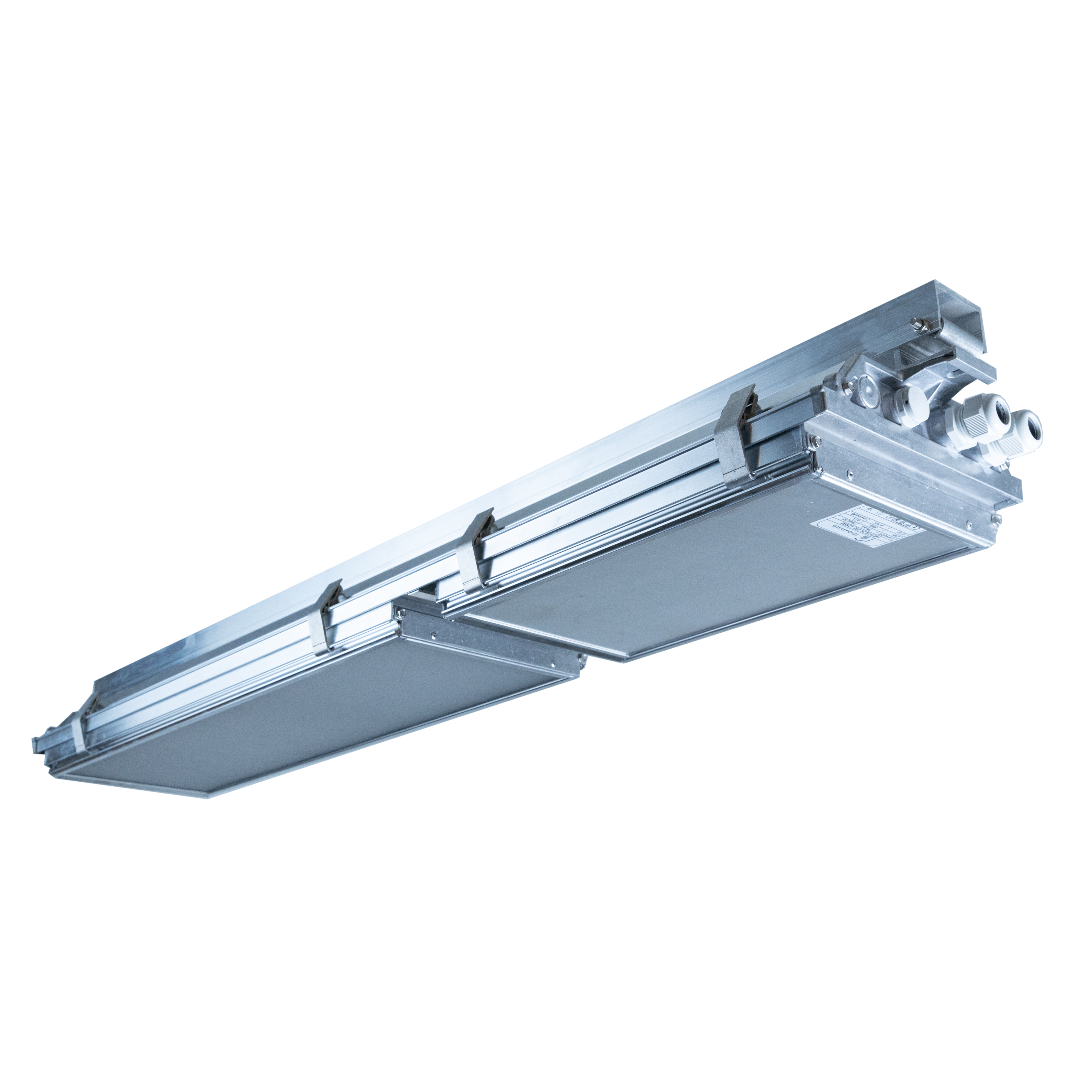

LED Victor 1000M is resistant, reliable and energy-efficient LED-fixture for industrial applications. Suitable for mounting heights 4-10m.

Body of extruded aluminium, tempered safety glass. Strictly selected high quality components, that are replaceable. 5 different light distribution options.

Available with multiple light control options: automatic daylight control / motion detection / Dali. Dimmable 1-10V upon request.

Delivered with instant mounting rail, which makes it easy to mount, no tools required to fix the lighting to the rail.

Led Victor -lighting fixtures are manufactured in Imatra, Finland and they have a 5 years warranty.

Technical data

Light source:

4x Osram PL-BRICK HP 25W 3900lm 166lm/W @550mA /

4x Osram PL-BRICK HP 31,5W 4990lm 159lm/W @700mA

Total power:

115W / 140W

Luminaire flux:

12500-16500 Lm (109-118lm/W)

Color temperature:

4000K (other available upon request)

CRI:

≥70 (other available upon request)

MacAdam:

≤ 5 SDCM

Operating temperature:

-40°C … +35°C (varies between types)

Electrical class:

I

Connection:

-0- 5x2,5mm² (with light control -0- 7x2,5mm²) / plug + 1,5m connection cable / CEE17-plug + 1,5m connection cable

Voltage:

230V AC

Estimated lifespan:

L80B10 >100.000h

Control options:

Dali / StepDIM / AstroDIM / MainsDIM

Housing:

Body extruded AL, end caps die cast AL, silicone gaskets, integrated dust filter

Cover:

Tempered safety glass / PC / PMMA, frame in AL, cover hinged, hinges in AL

Weight:

11,5 kg

Mounting:

Mounting height 4-10m. Instant mounting rail included -> easy to mount. Straight to ceiling, lighting suspension rail or cable ladder. See suitable brackets below.

Warranty:

5 years

Electrical components replaceable:

Yes



Hello world

Johdonsuojien kuormitettavuus

Max. Valaisinmäärä johdonsuoja-automaattia kohden

Tyyppi

B10A

B16A

C10A

C16A

120 O 28

7

11

11

17

130 O 28Y

5

8

8

12

Kannakkeet

Versions and product codes

Product code

Light beam

Total power

Net flux

Ta max.

Connection

LED VICTOR 1000M with control device casing

120 O 28 A1P

AxP (M-Class)

115 W

12900 Lm

35°C

-0- 5x2,5mm²

120 O 28 A1S

AxS (M-Class)

115 W

12900 Lm

35°C

-0- 5x2,5mm²

120 O 28 AP1

AP (M-Class)

115 W

12900 Lm

35°C

-0- 5x2,5mm²

120 O 28 AS1

AS (M-Class)

115 W

12900 Lm

35°C

-0- 5x2,5mm²

120 O 28 B1

B (49°)

115 W

12500 Lm

35°C

-0- 5x2,5mm²

120 O 28 C1

C (67°)

115 W

12900 Lm

35°C

-0- 5x2,5mm²

120 O 28 D1

D (104°)

115 W

13200 Lm

35°C

-0- 5x2,5mm²

LED VICTOR 1000M with uniform glass cover

130 O 28Y A1P

AxP (M-Class)

140 W

16500 Lm

30°C

-0- 5x2,5mm²

130 O 28Y A1S

AxS (M-Class)

140 W

16500 Lm

30°C

-0- 5x2,5mm²

130 O 28Y AP1

AP (M-Class)

140 W

16500 Lm

30°C

-0- 5x2,5mm²

130 O 28Y AS1

AS (M-Class)

140 W

16500 Lm

30°C

-0- 5x2,5mm²

130 O 28Y B1

B (49°)

140 W

16000 Lm

30°C

-0- 5x2,5mm²

130 O 28Y C1

C (67°)

140 W

16500 Lm

30°C

-0- 5x2,5mm²

130 O 28Y D1

D (104°)

140 W

16900 Lm

30°C

-0- 5x2,5mm²

Options

Option

Additional code

Light control

Motion detection (StepDim)

LT

Daylight control

H

Dali-control

DA

Structure

Plug and 1,5m connection cable

2 (replaces the last number)

CEE17-Plug and 1,5m connection cable

17 (replaces the last number)

Polyester powder coating (RAL 7024)

EP

PC-cover

PC

PMMA-cover (HACCP-approved)

PM



Max luminaire qty / MCB

Max. luminaire quantity / MCB

Type

B10A

B16A

C10A

C16A

070 O 28

7

12

11

19

095 O 28

7

11

11

17
