LUMINO
LED 35 - 210 W | 4600 - 27300 Lm
Ta: -40…+ 60ºC
Tehdasvalo's new modular Industrial light fitting is suitable for industrial indoor applications at installation heights of 2-20m.
High-quality components guarantee a long life. In addition, Lumino is upgradeable, i.e. the electronic components can be replaced at the end of their useful life.
As options, there are many different light distributions, with which the lighting can be easily optimized to suit each object.
The strong and durable housing is made of die-cast aluminum with a polyester coating on the surface. Clear tempered 4mm shutter glass as standard. If glass is not suitable for the application, an alternative is a HACCP-approved, satin-finish PMMA sheet or an impact-resistant polycarbonate sheet. The lid of the control gear box is placed on the lower surface of the light fitting, thanks to which the led driver can be easily accessed if necessary, even when installed.

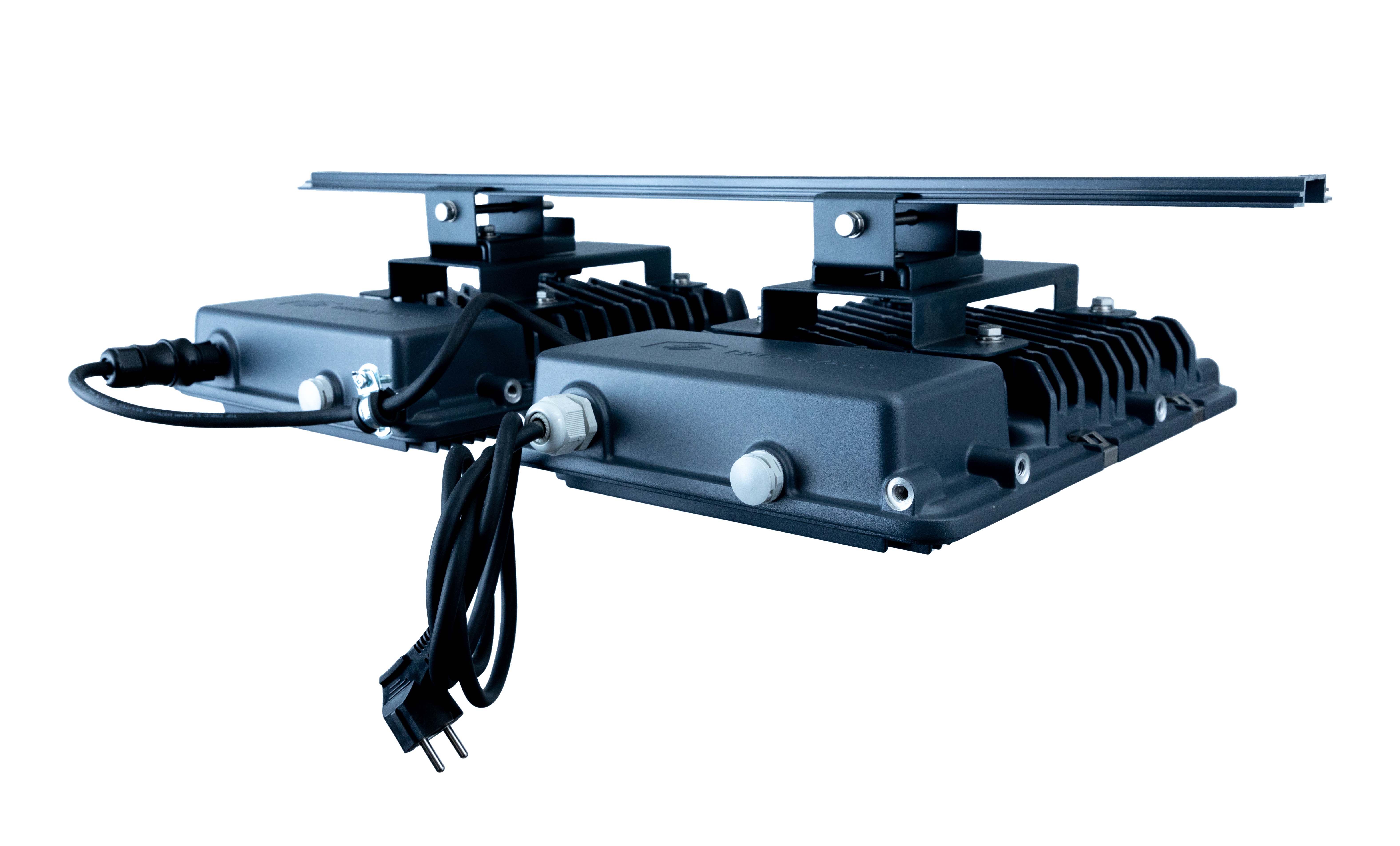

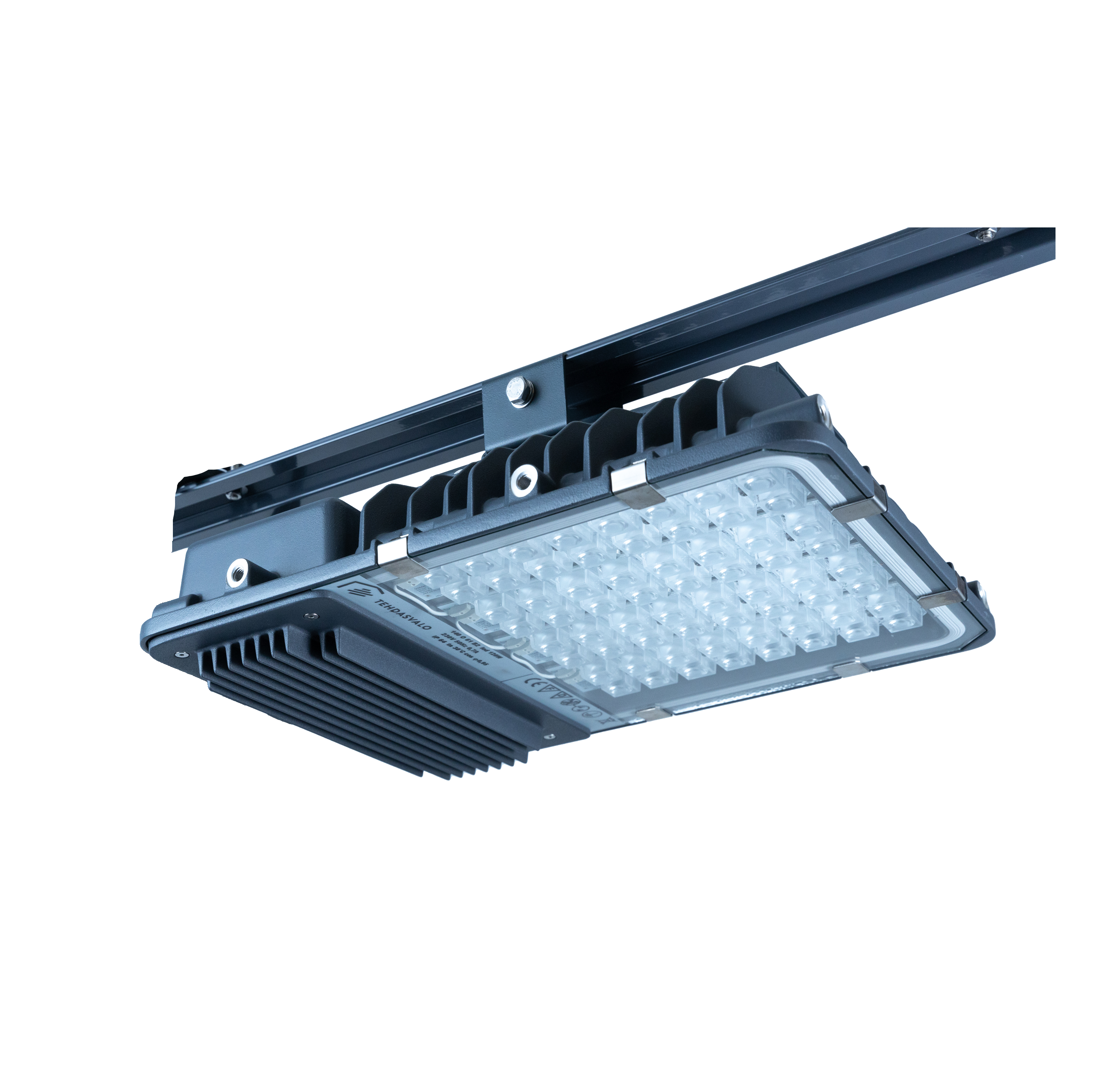

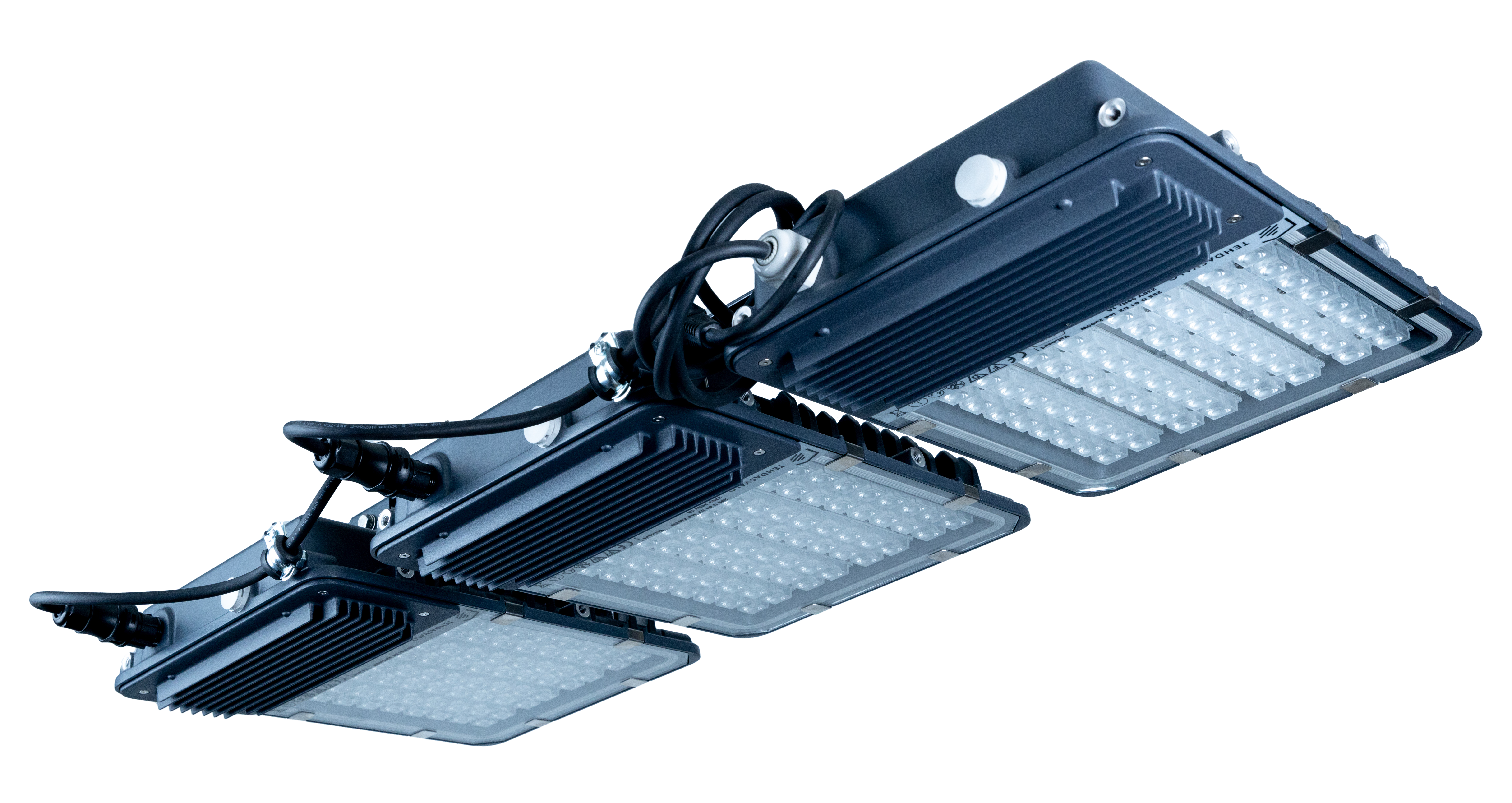

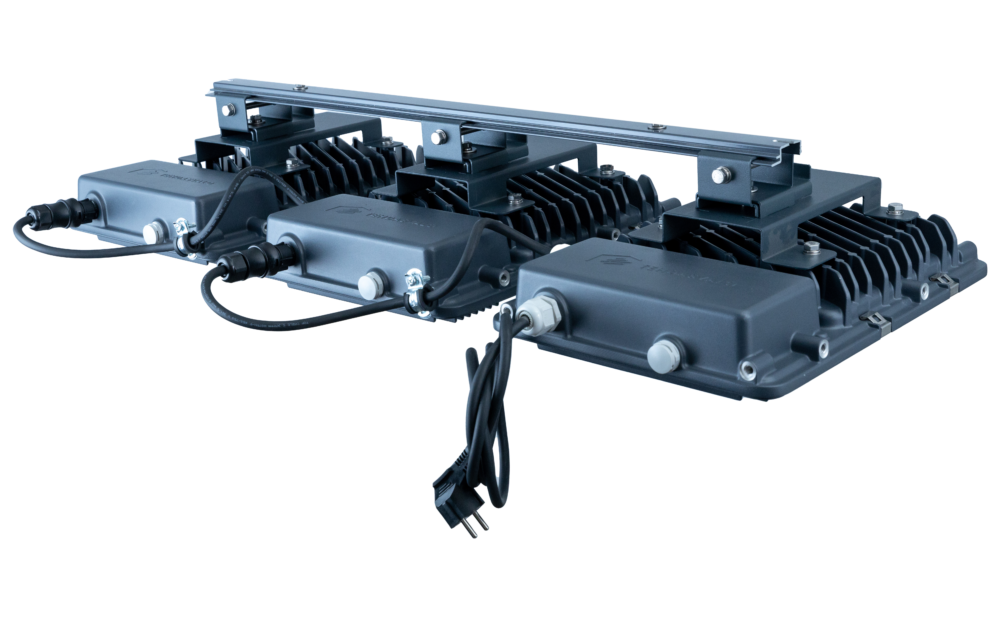

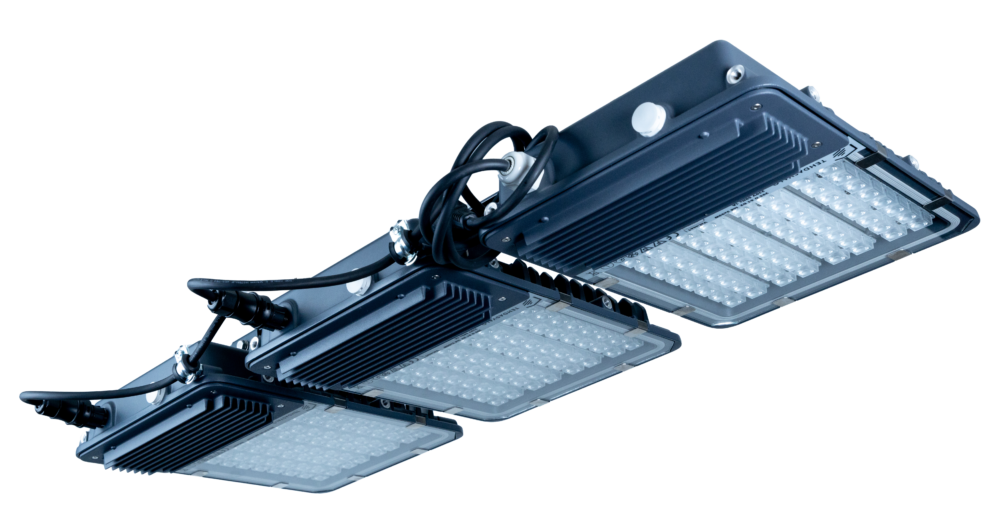

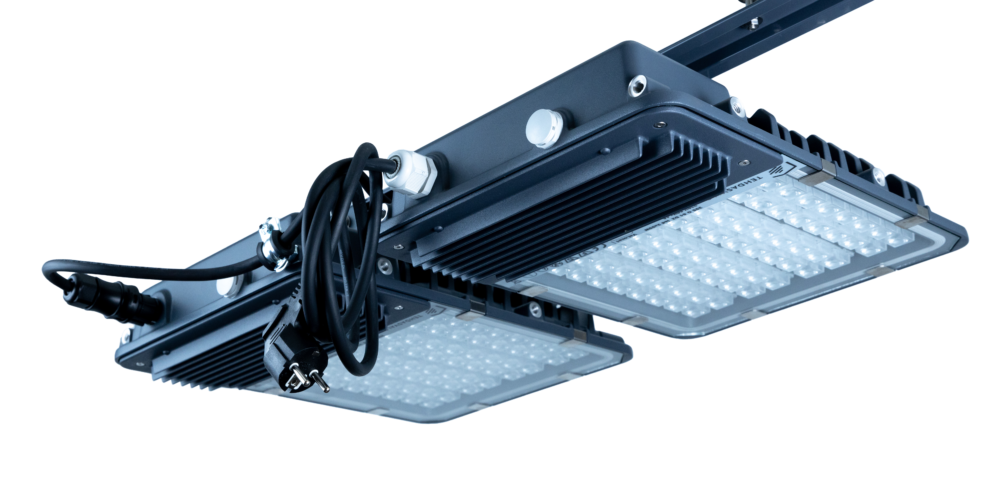

Recommended installation height 2-20m depending on the model. The Lumino luminaire consists of 1-3 light units, so by combining these units you can illuminate a variety of different spaces. Designing Lumino, special attention has been paid to the installation to make it quick and easy. That's why ceiling mounting bracket and a quick mounting rail are always included. The ceiling mounting bracket is always pre-installed on the light fitting at the factory. The quick-installation rail will be attached to the ceiling, lighting suspension rail or cable ladder, after which the light fitting is lifted onto the rail and the locking of the lamp to the rail is ensured by tightening the screw of the bracket. The lighting unit can be installed either longitudinally or transversely to the rail.
Real energy savings can be achieved with efficient light control. Light control can be implemented according to the customer's needs, selectable e.g. Dali or motion detector function with either a centralized or light-specific motion detector.
LUMINO light fittings have a 5-year warranty and the luminaires are manufactured in Imatra.
Technical data
| Led-modules: |
1-4 x 22-40W 3990-6360lm 161-179lm/W |
| Total power: | 35W / 70W / 96W / 140W / 160W / 210W |
| Luminaire net luminous flux: | 4600 - 27300 Lm (126-144 lm/W) |
| Color temperature: | 4000K (other available upon request) |
| Color rendering index (CRI): | ≥70 (other available upon request) |
| Operating ambient temp. (Ta): | -40 C ... +60°C (Ta max varies depending on type, see product code table below) |
| IP-rating: | IP65 |
| Electrical class: | I |
| Connection: | Quick connector / Schuko-plug + 1,5m connection cable / CEE17-plug (2P+E) + 1,5m connection cable |
| Voltage: | 230V AC |
| Lifetime: | L90B10 >100,000h |
| Control options: | Dali / Motion detection |
| Structure: | Die-cast aluminum, polyester coating RAL 7024. Tempered closing glass 4 mm (optionally PC or PMMA), silicon gaskets, ventilation plug. Connection box lid with screws, can be opened when installed. |
| Weight: | 7 - 22,5 kg |
| Mounting: | Recommendable mounting height 2-20m depending on type. Straight to ceiling, lighting suspension rail or cable ladder with included mounting kit (ceiling suspension bracket and quick installation rail) |
| Electrical components replaceable: |
Yes |
| Warranty: |
5 years |
Versions and product codes
Standard versions with ceiling mounting kit
|
Product code |
Total power |
Net flux (@ Ta Max) |
Ta max. |
Connection |
Weight |
N° of lighting units |
|
035 O 61 x4 |
35 W |
4600 - 4800 lm |
60°C |
Quick connector |
7 kg |
1 |
|
070 O 61 x4 |
70 W |
8900 - 9100 lm |
50°C *special version up to Ta max 60°C |
Quick connector |
7,5 kg |
1 |
|
095 O 61 x4 |
96 W |
12800 - 13200 lm |
45°C |
Quick connector |
7,5 kg |
1 |
|
140 O 61 x4 |
140 W |
17800 - 18200 lm |
40°C |
Quick connector |
8 kg |
1 |
|
160 O 61 x4 |
160 W |
22000 - 23000 lm |
35°C |
Quick connector |
8 kg |
1 |
|
270 O 61 x4 |
140W |
17800 - 18200 lm |
50°C |
Quick connector |
15 kg |
2 |
|
295 O 61 x4 |
192 W |
25600 - 26400 lm |
45°C |
Quick connector |
15 kg |
2 |
|
370 O 61 x4 |
210 W |
26700 - 27300 lm |
50°C |
Quick connector |
22,5 kg |
3 |

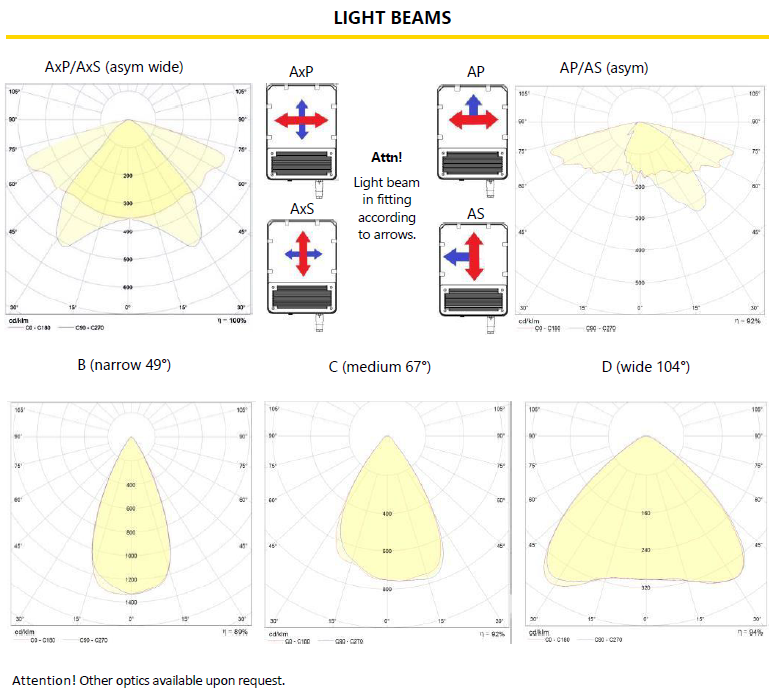

Light beams
The following light beams are available to each type. Replace "x" in the product code by preferred light beam code:
Options
Lumino -light fittings can be tailored to customer's needs. The most common options with extra codes in below table:
| Option | Extra code at the end of product code |
| Light control | |
| Motion detection with central detectordetector/push button control |
LT |
| Dali-control | DA |
| Light-spesific motion detection, possibility for wireless grouping | AIR |
| Structure | |
| Schuko-plug and connection cable 1,5m (3m/5m upon request) | 2 (replace last number) |
| CEE17-plug and connection cable 1,5m | 17 (replace last number) |
| PC-diffuser | PC |
| PMMA-diffuser (acryl, HACCP-approved) | PM |
Max qty of luminaires / MCB
Max. valaisinmäärä / johdonsuoja-automaatti
| Type | B10A | B16A | C10A | C16A |
| 035 O 61 | 13 | 21 | 21 | 35 |
| 070 O 61 | 7 | 12 | 11 | 19 |
| 095 O 61 | 7 | 11 | 11 | 17 |
|
140 O 61 160 O 61 180 O 61 270 O 61 |
4 | 6 | 6 | 10 |
|
295 O 61 370 O 61 |
2 | 4 | 4 | 6 |
