LED victor HT
Lighting for industrial high temperature areas, ambient temperature max. +80°C…+120°C
- Drivers placed in a separate box outside the hot area (ta max +40°C)
-
Usual applications: Industrial areas with high temperatures, e.g. paper machine hood and sawmill drying canals. Locations where high ambient temperature causes problems to standard luminaires
- Maintainable: Technical components are replaceable
- Robust mechanical structure with housing made of 100% recycled aluminium.
Technical data
| Type name: | Led Victor HT80 | Led Victor HT100 | Led Victor HT120 |
| Type number: | 510 C 20 D1 HT | 310 C 20 D1 HT | 506 C 20 D1 HT |
| Light source: | LED COB 5x10W | LED COB 3 x 10W | LED COB 5x6W |
| Total power: | 50W | 30W | 30W |
| Net luminous flux: | 7100 lm (143lm/W) @ Ta Max | 4300lm (143lm/W) @ TaMax | 4500 lm (150lm/W) @ TaMax |
| Ta max: | 80°C | 100°C | 120°C |
| Lifetime: | L70B50 > 30.000 @ TaMax | ||
| Electrical class: | I | ||
| Connection: |
-0 3 x 2,5-4mm² M20 LED Drivers placed in a separate connection box outside the hot area (to be ordered separately). Cable between the luminaire and control gear: heat resistant min. 3x2,5mm², max length 30m. |
||
| Voltage: | 150-163V DC | 90-98V DC | 150-163V DC |
| Color temp.: | 4000K | ||
| CRI: |
CRI ≥ 80 (other upon request) |
||
| Mechanical structure: |
Body of 100% recycled extruded aluminium. Hinged cover of 4mm tempered safety glass (or optional PMMA/PC), frame in aluminium. Easy opening with aluminium clamps. Silicone gaskets. Equipped with filter. Screws in stainless steel. |
||
| Weight: | 8,5 kg | 6 kg | 8,5 kg |
| Dimensions: | 775 x 250 x 90 mm | 525 x 250 x 90mm | 775 x 250 x 90 mm |
| Mounting: |
Straight to mounting surface or separate bracket from external mounting lugs. See suitable brackets below. |
||
| Warranty: | 2 years | ||
| Technical components replaceable: | Yes | ||
Product codes
Product codes
| Type name | Product code | Total power | Connection | Ta max | Weight |
| Led Victor HT80 | 510 C 20 D1 HT | 50W | -0 3×2,5-4mm² M20 | 80°C | 8,5 kg |
| Led Victor HT100 | 310 C 20 D1 HT | 30W | -0 3×2,5-4mm² M20 | 100°C | 6 kg |
| Led Victor HT120 | 506 C 20 D1 HT | 30W | -0 3×2,5-4mm² M20 | 120°C | 8,5 kg |
Connection boxes
CONTROL GEAR BOX FOR 1-6 LED VICTOR HT LUMINAIRES
Structure:
- IP 65
- Equipped in Rittal enclosure
Material:
- Sheet steel
- Surface finish: Dipcoat primed, powder coated on the outside, textured paint, RAL 7035
- All-round solid construction or with integrated louvres
- Hinged door
- Cable connections through cable glands
- Input 2 pcs M25
- Output M25 for each fixture
Mounting:
- Wall mounting with specific brackets or straight to nonflammable base through the back of enclosure
- Ambient temperature -25°C ... +40°C
Connection:
- Input 400 / 230V AC -0- 5x2,5mm²
Product codes
|
Code |
Total power |
Ta max. |
Box dimensions |
Weight |
|
8L0 1 75 01 |
1 x max. 75W |
40°C |
300 x 200 x 120 |
5 kg |
|
8L0 2 75 01 |
2 x max. 75W |
40°C |
300 x 400 x 210 |
10 kg |
|
8L0 3 75 01 |
3 x max. 75W |
40°C |
300 x 400 x 210 |
11 kg |
|
8L0 4 75 01 |
4 x max. 75W |
40°C |
600 x 380 x 210 |
17 kg |
|
8L0 5 75 01 |
5 x max. 75W |
40°C |
600 x 600 x 210 |
25 kg |
|
8L0 6 75 01 |
6 x max. 75W |
40°C |
600 x 600 x 210 |
26 kg |
Optional mounting brackets
Mounting brackets
| Code | Specification | Material | Orientation / Adjustment | Weight | For luminaires |
| 900 1 00 00 | Wall bracket 9001 |
Hot-dip galvanized steel, fixing screws stainless steel |
Vertical, stepless | 3,5 kg | HT80, HT120 |
| 900 1 00 00 RST | Wall bracket 9001 RST | Bracket and screws in stainless steel | Vertical, stepless | 3,5 kg | HT80, HT120 |

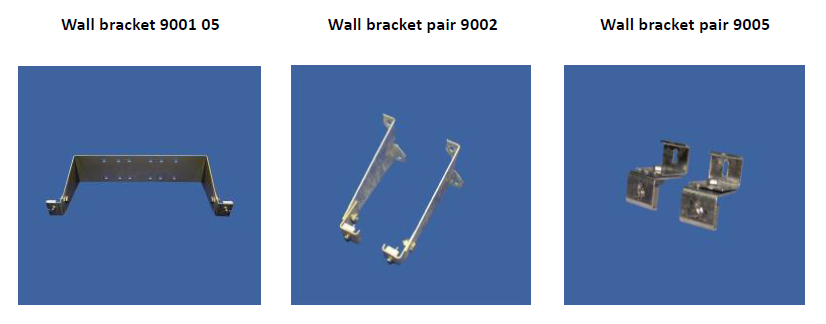

| 900 2 00 00 | Wall bracket pair 9002 |
Hot-dip galvanized steel, fixing screws stainless steel |
Vertical, stepless | 2 kg | HT80, HT100, HT120 |
| 900 5 00 00 | Wall bracket pair 9005 |
Hot-dip galvanized steel, fixing screws stainless steel |
Vertical, stepless | 0,5 kg | HT80, HT100, HT120 |
| 900 8 00 0x (*) | Chain suspension |
Chains in hot-dip galvanized steel, hooks stainless steel |
- | HT80, HT100, HT120 | |
| 900 1 05 00 | Wall bracket 9001 05 |
Hot-dip galvanized steel, fixing screws stainless steel |
Vertical, stepless | 3 kg | HT100 |
| 900 1 05 00 RST | Wall bracket 9001 05 RST | Bracket and screws in stainless steel | Vertical, stepless | 3 kg | HT100 |
| 900 3 00 00 |
Pole bracket 9003 for diam. 45...60mm poles |
Hot-dip galvanized steel, fixing screws stainless steel |
Vertical, stepless | 4 kg | HT80, HT120 |
| 900 3 00 00 RST |
Pole bracket 9003 RST for diam. 45...60mm poles |
Bracket and screws in stainless steel | Vertical, stepless | 4 kg | HT80, HT120 |
| 900 6 00 00 | Wall bracket 9006 |
Hot-dip galvanized steel, fixing screws stainless steel |
Vertical 0° - 25° - 45° | 2,5 kg | HT80, HT120 |
| 900 6 05 00 | Wall bracket 9006 05 |
Hot-dip galvanized steel, fixing screws stainless steel |
Vertical 0° - 25° - 45° | 2,5 kg | HT100 |
| 900 7 00 00 | Pole bracket 9007 for diam. 45...60mm poles |
Hot-dip galvanized steel, fixing screws stainless steel |
Vertical 0° - 25° - 45° | 3 kg | HT80, HT120 |
| 900 7 05 00 | Pole bracket 9007 05 for diam. 45...60mm poles |
Hot-dip galvanized steel, fixing screws stainless steel |
Vertical 0° - 25° - 45° | 3 kg | HT100 |
| 900 T 60 30 | Telescopic pole H=2,25...3m | Hot-dip galvanized steel | H=2,25...3m - locking every 250mm. | 22 kg | |
| 900 T 60 30 RST | Telescopic pole RST H=2,25...3m | Stainless steel | H=2,25...3m - locking every 250mm. | 22 kg |
Max luminaire quantity / MCB
max. No of luminaires
| Type | B10A | B16A | C10A | C16A |
|
510 C 20 D1 HT 310 C 20 D1 HT 506 C 20 D1 HT |
5 | 9 | 8 | 14 |
