LUMINO floodlight

LED 35 - 180 W | 4600 - 26000 Lm

Ta: -40…+ 60ºC

Tehdasvalo's self-made floodlight is suitable for outdoor lighting and indoor wall installation.

High-quality components guarantee a long life. In addition, Lumino is upgradeable, i.e. the electronic components can be replaced at the end of their useful life.

As alternatives there are many different light distributions with which the lighting can be optimized to suit each application.

The strong and durable frame is made of die-cast aluminum with a polyester coating on the surface. Clear tempered 4mm safety glass as standard. If glass is not suitable for the application, an alternative is a HACCP-approved, satin-finish PMMA sheet or an impact-resistant polycarbonate sheet. The cover of the control gear box is placed on the lower surface of the fitting, thanks to which the control gear box can be easily opened if necessary, even when installed.

Recommended installation height 2-15m depending on the model. Lumino floodlight comes as standard with floodlight bracket, from which it can be installed directly on the wall surface. Separate brackets are available for installation to horizontal pipe, pole and top of pole.

Real energy savings can be achieved with efficient lighting control. Lighting control can be implemented according to the customer's needs, selectable e.g. Dali or motion detector function with either a centralized or luminaire-specific motion detector.

LUMINO floodlights have a 5-year warranty and they are manufactured at Imatra, Finland.

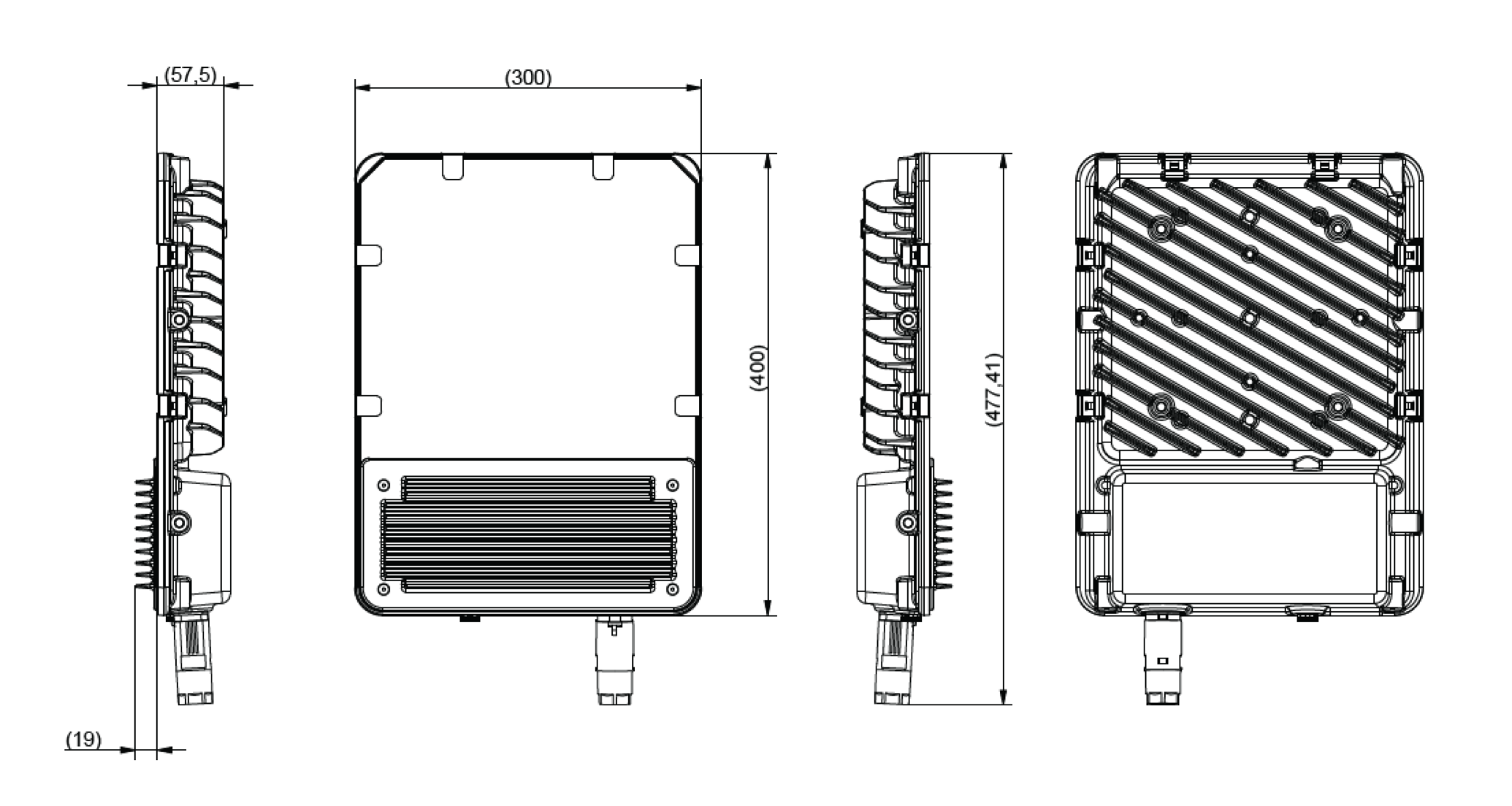

Technical data

Led-modules:	1-4 x 22-40W 3990-6360lm 161-179lm/W
Total power:	35W / 70W / 96W / 140W / 160W / 180W
Luminaire net luminous flux:	4600 - 26000 Lm (126-144 lm/W)
Color temperature:	4000K (other available upon request)
Color rendering index (CRI):	≥70 (other available upon request)
Operating ambient temp. (Ta):	-40 C ... +60°C (Ta max varies depending on type, see product code table below)
IP-rating:	IP65
Electrical class:	I
Connection:	Quick connector / Schuko-plug + 1,5m connection cable / CEE17-plug (2P+E) + 1,5m connection cable
Voltage:	230V AC
Lifetime:	L90B10 >100,000h
Control options:	Dali / Motion detection
Structure:	Die-cast aluminum, polyester coating RAL 7024. Tempered closing glass 4 mm (optionally PC or PMMA), silicon gaskets, ventilation plug. Connection box lid with screws, can be opened when installed.
Weight:	7 - 9,5 kg
Mounting:	Recommendable mounting height 2-15m depending on type. Straight to wall with standard bracket.
Warranty:	5 years

Versions and product codes

Product codes

LUMINO floodlight standard versions (On/Off)
Product code	Total power	Net flux (@ Ta Max)**	Ta max.	Connection	Weight
035 O 60 x4	35 W	4600 - 4800 lm	60°C	Quick connector	7 kg
070 O 60 x4	70 W	8900 - 9100 lm	50°C *with changes up to ta 60°C	Quick connector	7,5 kg
095 O 60 x4	96 W	12800 - 13200 lm	45°C	Quick connector	7,5 kg
140 O 60 x4	140 W	17800 - 18200 lm	40°C	Quick connector	9,5 kg
160 O 60 x4	160W	22000 - 23000 lm	30°C	Quick connector	9,5 kg
180 O 60 x4	180 W	25000 - 26000 lm	30°C	Quick connector	9,5 kg

**Net flux depending on the optics.

Light beams

The following light beams are available for each above mentioned type. Replace "x" in the product code with respective light beam code as follows:

Options

Lumino floodlights can be tailored upon customer's needs. The most common product options with additional codes below:

Option	Extra code at the end of product code
Light control
Motion detection with central detector / push button control	LT
Dali-control	DA
Light spesific motion detection, possibility for wireless grouping	AIR
Structure
Schuko-plug and 1,5m connection cable (3m/5m upon request)	2 (replaces the last number)
CEE17-plug and 1,5m connection cable (3m/5m upon request)	17 (replaces the last number)
PC-diffuser	PC
PMMA-diffuser (acryl, HACCP-approved)	PM

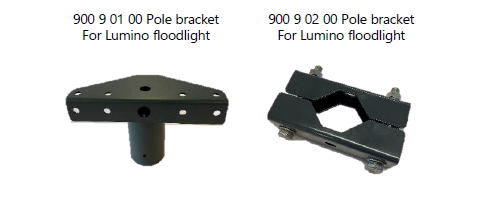

Suitable brackets

Product code	Specification	Material	Weight
900 9 01 00	Pole bracket for Ø60 mm pole	Steel, polyester powder coating	2,3 kg
900 9 02 00	Pipe bracket for Ø38-60mm pipe	Steel, polyester powder coating	1 kg
900 T 60 30	Telescopic pole 2,25…3m, locking every 250mm	Hot dip galvanized steel	22 kg
900 T 60 30 RST	Telescopic pole RST 2,25…3m, locking every 250mm	Stainless steel	22 kg
900 R 60 25	Pivotable R-lamp post, D 60mm H 2,5m	Hot dip galvanized steel	19 kg

Max luminaire quantity / MCB

Max. qty of luminaires / MCB

Lighting type	B10A	B16A	C10A	C16A
035 O 60	13	21	21	35
070 O 60	7	12	11	19
095 O 60	7	11	11	17
140 O 60 160 O 60 180 O 60	5	8	8	12

Downloads:

Lumino_floodlight_032024 (product datasheet, pdf)
