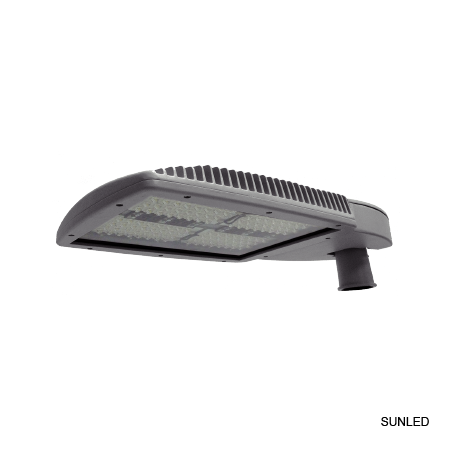

SUNLED

LED 100W/135W/203W/270W

11650 - 31050 lm

Description

BODY: Body and cover made of die-cast aluminium painted with polyester powder, standard colour grey RAL9006.

SCREEN: Tempered glass thickness 5mm fixed to the removable frame made of die-cast aluminium painted with polyester powder, standard colour grey RAL9006.

GASKET: made in silicone.

POWER UNITS: electrical components mounted on easily removable fixing plate. Expected life of the power supply at Tc: 50.000h for standard solution and 100.000h for dimmable solution. Power factor >0,98, 220+240V / 50-60Hz. lnsulation class II, on request available class I.

CONNECTION: cable entry through membrane cable gland with protection degree IP66.

OVERVOLTAGE PROTECTION: protected against overvolta-ge in differential made up to 10kV and in common mode up to 6kV.

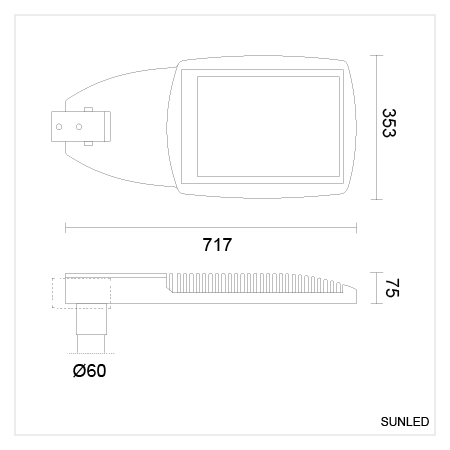

POLE CONNECTION: adjustable goblet in die-cast aluminium painted with polyester powder with 5° step in order to allow both top pole and side mounting -25° / + 15°. Suitable for poles diameter 60mm.

LED MODULES: LED light source with high efficiency (149lm/W @ 700mA 85°C). Expected life of the led 60.000h L80B20 (TM-21 Projection). Secondary optic in stabilized PMMA. Multi-layer lighting concept in which each optic illuminates the entire street so as to guarantee uniformity parameters even if some LEDs are failed. Available different photometric curves to optimized the performances in various areas:
AS -> asymmetrical
FW -> large areas and parking lots

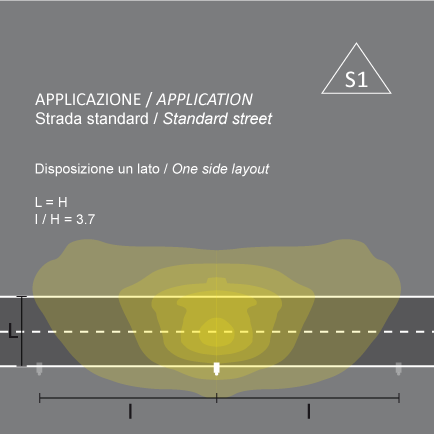

S 1 -> standard street
S2 -> narrow street
S3 -> large street
