rinoled-EX
ATEX-zones 2,21,22
26W / 38W / 52W / 71W
Output flux 3500-9400 lm
Watertight LED light fixtures in AISI 304 stainless steel for applications in explosion hazardous areas as defined in ATEX 2014/34/EU Directive. The body is made of a single piece of AISI304 stainless steel or galvanised steel, with no welded joints.
The IP66 rating guaranteed by a reinforced gasket in anti-aging VMQ silicone elastomer, makes the RINO-EX light fixtures suitable for installations in environments with the presence of oxidising chemicals, salt solutions, acids and
motor and vegetable oils. The diffuser in tempered glass is fixed to the body thanks to a system of AISI 304 stainless steel fixing hooks. The light fixture is equipped with M8 threaded eyebolts that are screwed to the body with no need to open the device. The light fixture is equipped with LED strips with 4000K colour temperature, CRI≥80 and anti-aging PMMA lenses able to guarantee a high visual comfort and an effi cient control of the luminous flux with UGR<22.
The light fixture is equipped with standard resinated on-off driver suitable for installations in potentially explosive
environments. The protection against overvoltages, caused by lightnings or voltage surges, protects electronic components up to 6 kV. The light fixture is certified to withstand temperatures from -30 °C to +45 °C. The cable entry is made with an M20 technopolymer cable gland.
|
Atex execution II 3G 2D |
 II 3G 2DEx ec mc IIC T6 Gc Ex tb IIIC T 80 °C Db |
| Body material |
|
| Diffuser material | Tempered glass |
| Net weight | 690 mm light fixture: 3.4 kg; 1300 mm light fixture: 6.2 kg |
| Protection rating | IP66 as per IEC/EN 60079-0 and 60598-1 |
| Insulation class | I |
| Impact resistance | IK09 as per IEC/EN 62262 |

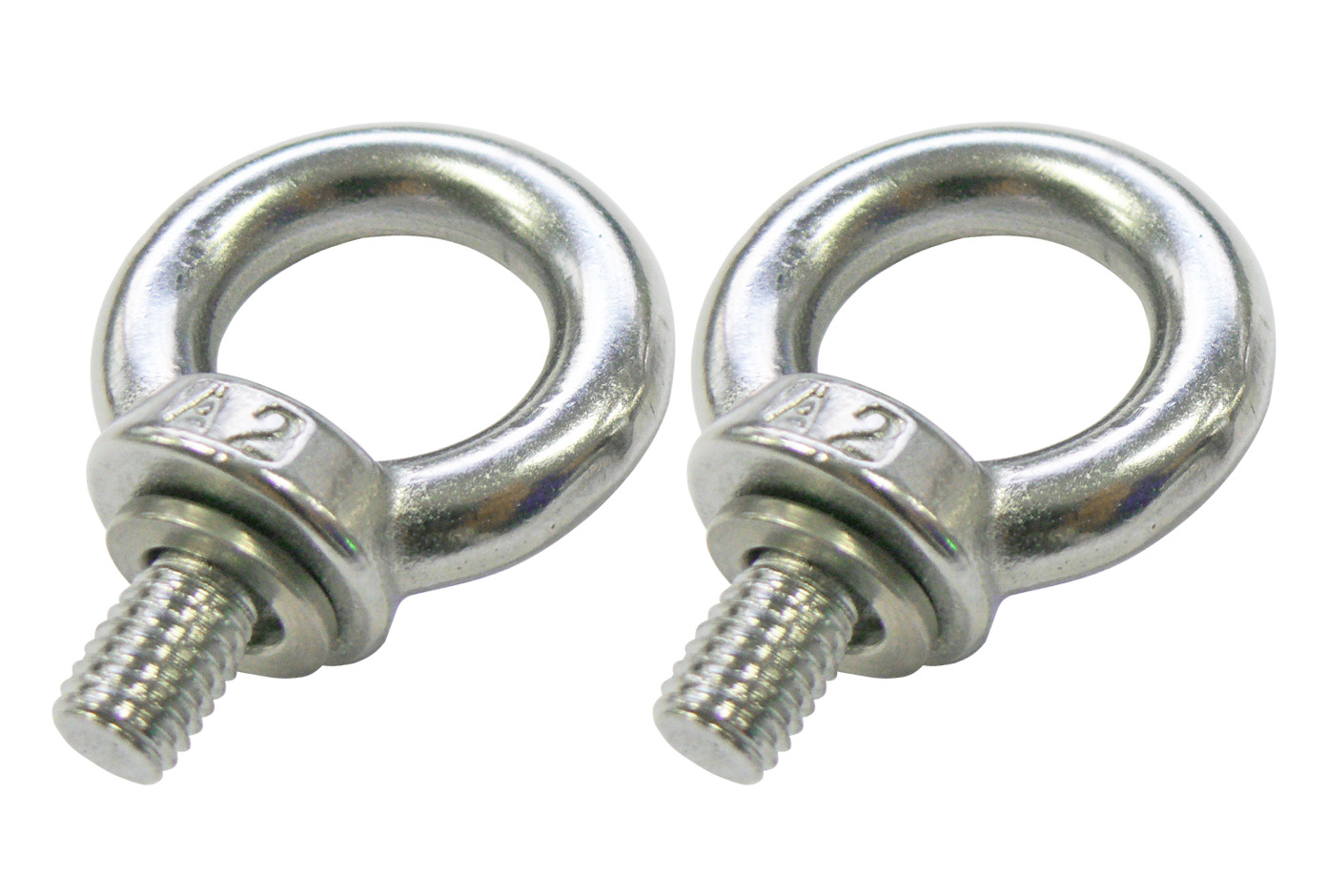

| Mounting system | Pair of eyebolts in AISI 304 stainless steel (code 820011) |
| Optics features | Anti-aging, UV-resistant PMMA lenses with >90% efficiency and >95% transparency |
| Actual luminaire efficiency | Up to 137 lm/W |
| Colour temperature | 4000 K (on request: 3000 K; 5000 K; 6500 K) |
| Colour rendering index values | CRI ≥ 80 (good - according to EN 62717 criteria) |
| Colour consistency | MacAdam 3-step |
| Photobiological risk | RG0 - Exempt Group (EN 62471) |
| Glare index | UGR <22 |
| Residual flicker | < 3% |
| Lifetime | L80 B10 @50.000h Tq=25 °C |
| Supply voltage | 220-240V Vac; 180-240V Vdc 0-50-60Hz |
| Input surge protection | 6kV common mode and differential mode (EN 61000-4-5) |
| Power factor | ≥ 0,95 |
| Driving current | 500mA |
| Power supply | Spring clamps and M20 cable gland |
| Max. conductor cross-section | 1÷2.5 mm2 |
| Entry cable diameter | 10÷14 mm |
| Emergency function | 1-3 h |
| Emergency battery charging time | 24 h |
| Ambient functioning temp. | -30 °C - +45 °C; (-40 °C on request) 0 °C - +35 °C (emergency versions) |
| Ambient storage temp. | -40°C - +70 °C -30°C - +50°C (emergency versions) |
| Warranty | 2 years with optional extension to 5 |
| Certification and approval marks | EX, IECEx |
| Directives | 2014/34/EU; 2014/35/EU; 2014/30/EU; 2011/65/EU |
| Product standards |
EN 60079-0, EN 60079-7, EN 60079-18, EN 60079-31, EN 60598-1, |
| Manufacturer / Country of Origin |
Palazzoli S.p.a, Italy |
Versions and product codes
See below datasheet
Downloadable content:
Rino-LED-EX_Palazzoli_2022 FI (Catalogue RinoLED-EX Zone 1,2,21,22, pdf)
RinoEX LED LDT (LDT-files, .zip)
Rino-EX-LED-datasheets (.zip)
10269_RinoLED EX_Instruction_CE (Safety, use and maintenance instruction & EU declaration of conformity, .pdf)
CERT_ITS_ITS-I20ATEX251401X-2X , CERT_ITS_IECEx_ITS_20.0035X (certificates, .pdf)
